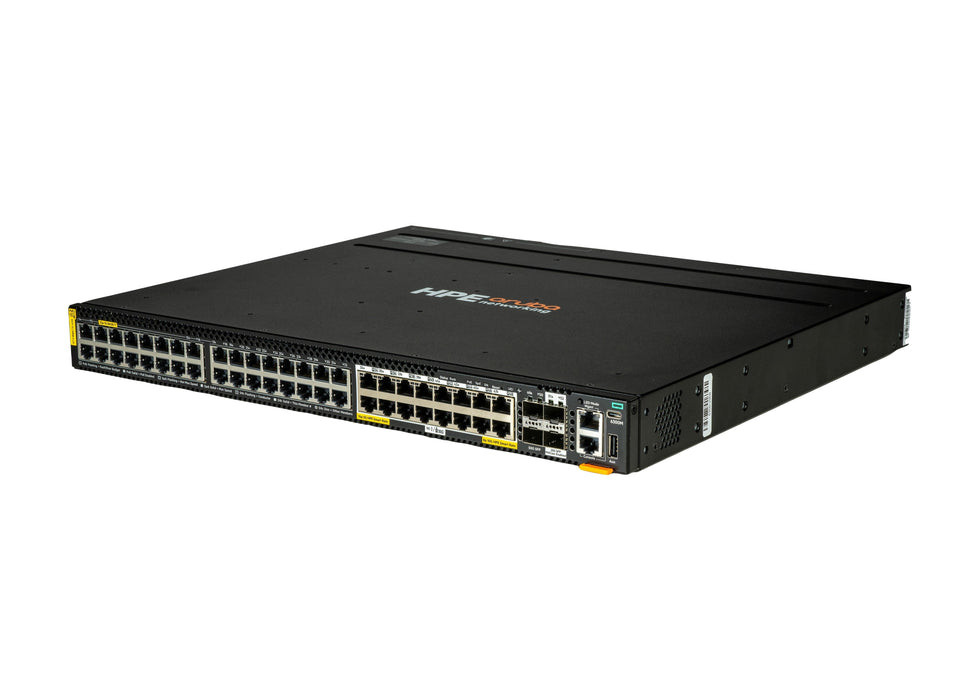

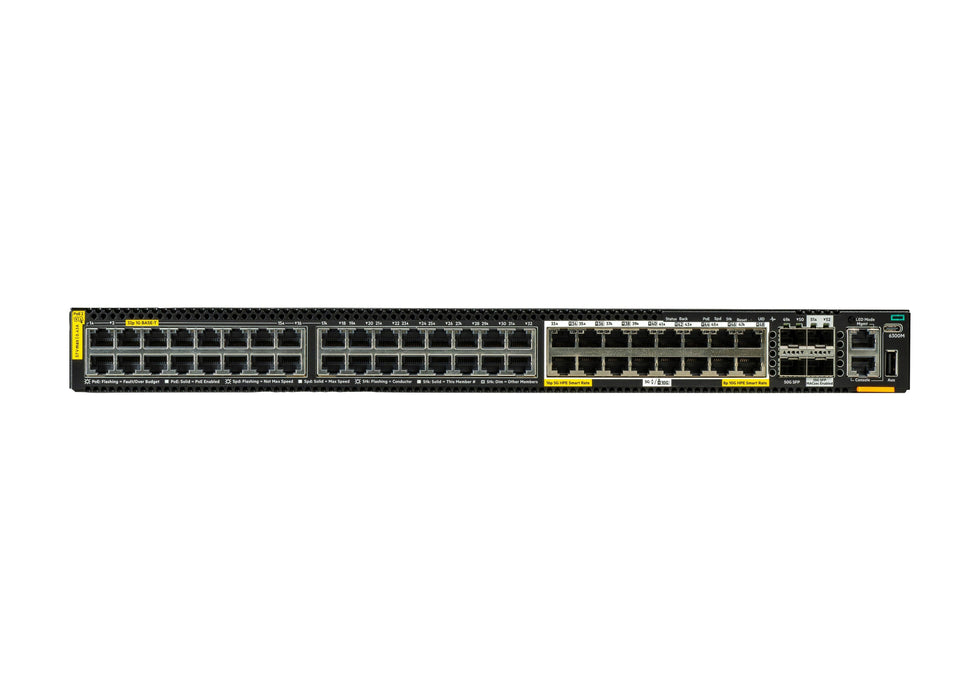

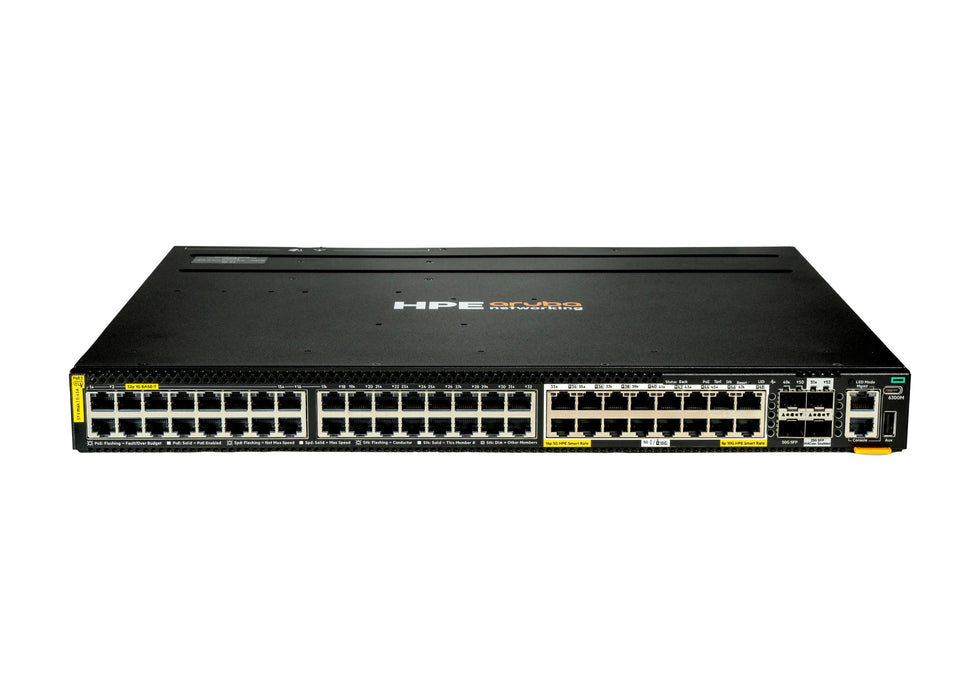

HPE S4P41A switch Gestionado L3 10G Ethernet (100/1000/10000) Energía sobre Ethernet (PoE) 1U Negro, Plata
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.
Argumento de ayuda para novedades:
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
Full stack management and security
HPE Aruba Networking CX 6300 Switch Series es compatible con HPE Aruba Networking Central para una gestión de control de punto único que ofrece visibilidad de red mejorada y un conjunto de herramientas de IA ampliado, que aborda la escala y las demandas de los entornos de tareas cruciales más importantes.
Dynamic segmentation that automatically applies and enforces user, device, and application-aware policies on HPE Aruba Networking wired and wireless infrastructures.
Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better end-user experience and streamlined IT operations. Application recognition and control are available through CX Advanced Feature Pack .
Switch-to-switch tunnels enable scalable multi-tenancy support with Virtual Extensible Local-Area Networks (VXLAN) to VRF mapping, while allowing policy application through user roles .
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).
Puntos clave del producto
- Gestionado L3 Administación basada en web
- Calidad de servicio (QoS) soporte
-
Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 48
- Soporte 10G 100BASE-T
-
Capacidad de conmutación: 524 Gbit/s
- 1U Montaje en rack Apilable
- AC/DC Energía sobre Ethernet (PoE)
Características de administración
-
Tipo de interruptor: Gestionado
-
Capa del interruptor: L3
-
Calidad de servicio (QoS) soporte: Si
-
Administación basada en web: Si
-
Administrado a través de la nube: Si
Puertos e Interfaces
-
Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 48
-
Puertos tipo básico de conmutación RJ-45 Ethernet: 10G Ethernet (100/1000/10000)
-
Número de puertos USB Tipo A: 1
-
Número de puertos de gestión: 1 pieza(s)
-
Conector fibra óptica: SFP28, SFP56
-
Número de puertos SFP28: 2
-
Número de puertos QSFP56: 2
Conexión
-
Soporte 10G: Si
-
Tecnología de cableado ethernet de cobre: 100BASE-T
-
Espejeo de puertos: Si
Transmisión de datos
-
Capacidad de conmutación: 524 Gbit/s
-
Rendimiento: 390 Mpps
Diseño
-
Montaje en rack: Si
-
Apilable: Si
-
Factor de forma: 1U
-
Color del producto: Negro, Plata
Desempeño
-
Apilamiento físico (unidades): 10
-
Procesador incorporado: Si
-
Frecuencia del procesador: 1800 MHz
-
Tipo de memoria: DDR4-SDRAM
-
Memoria interna: 8000 MB
-
Memoria Flash: 32000 MB
Control de energía
-
Fuente de energía: AC/DC
-
Fuente de alimentación incluida: No
-
Voltaje de entrada AC: 100 - 240 V
-
Frecuencia de entrada AC: 50/60 Hz
-
Nota de consumo de potencia: With JL670A PSU: Idle: 103W 100% Traffic Rate: 134W With JL758A PSU: Idle: 111W 100% Traffic Rate: 135W
-
Nota de fuente de alimentación: 2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL086A, JL087A, JL670A and JL758A.
Alimentación a través de Ethernet (PoE)
-
Energía sobre Ethernet (PoE): Si
-
Potencia a través de Ethernet (PoE) Presupuesto: 2880 W
Otras características
-
Latencia: Less than 5 µs 1 Gbps: 3.6 µs
-
Memoria y procesador: CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration
-
Puertos de entrada y salida (E/S): 32 x 10/100/1000M and 16 x HPE Smart Rate 1/2.5/5G BaseT ports (configuration can be changed to 8 x HPE Smart Rate 10 G BaseT ports) with Class 8 PoE supporting up to 90W per port 2 x 10G/25G/50G [4] SFP ports 2 x 10G/25G SFP ports (MACsec) Supports PoE standards IEEE 802.3af, 802.3at and 802.3bt (up to 90W) 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port 1 x RJ-45 console Port 1 x Bluetooth dongle to be used with CX Mobile App
-
Gestión de rendimiento: Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
-
Peso (imperial): 6,02 kg (13.3 libras)
-
Ventilador: Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans.
Condiciones ambientales
-
Intervalo de temperatura operativa: 0 - 45 °C
Peso y dimensiones
-
Ancho: 44 mm
-
Profundidad: 442 mm
-
Peso: 6,02 kg
