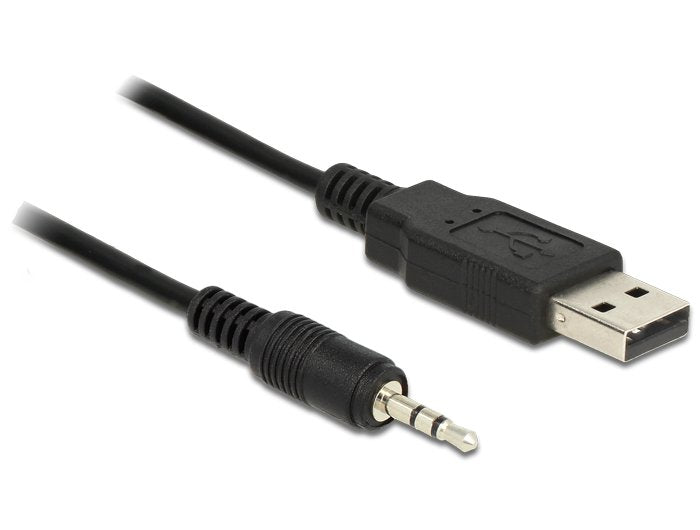

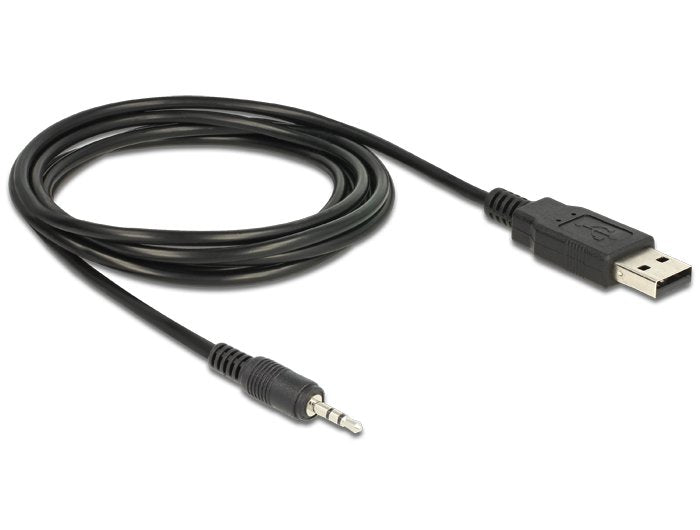

Konverter Usb 2.0 Stecker > Ttl 2,5 Mm 3 Pin Klinkenstecker 1,8 M (3,3 V)

Descripción

This USB TTL converter by Delock is due to its wide temperature range most suitable for industrial applications. It can be used for e.g. level converter, GPS-modules, interface controller, micro controller etc.

Detalles tecnicos

• Connector: USB 2.0 type A male Serial-TTL male &gt, 2.5 mm 3 pin stereo jack male
• Pin assignment:
  1. GND
  2. TXD
  3. RXD
• Chipset: FTDI 232RL
• Cable gauge: 26 AWG
• Temperature range: -20°C to +80°C
• No-load current: 70 uA
• Converter: 5 V / 15 mA (VCC, GND)
• Compatible to UHCI / OHCI / EHCI controller
• LVTTL 3.3 V (data) / 4 mA or HighLevel 12 mA
• Data transfer rate up to 3 Mbps
• Databit: 7 or 8
• Stoppbits: 1 or 2
• Parity: none, space, even, odd, mark
• Flow control: software XON/XOFF or hardware RTS / CTS
• FIFO: 128 Byte – RX
  256 Byte – TX
• Cable length: ca. 1.80 m

Requisitos del sistema

• Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11, Windows CE 4.2, 5.0, 6.0,
  Mac OS 10.5, 10.6, Mac OS ex 10.9, Linux Kernel ex 2.6
• PC or laptop with a free USB type A port

Contenido del paquete

• USB TTL cable
• Driver CD
• User manual

Paquete

• Retail Box
