DELOCK 63946 CONVERTER USB TYPE-C™ 2.0 MALE TO LVTTL 3.3 V 6 PIN PIN HEADER FEMALE SEPARATE 2.0 M

Name: DELOCK 63946 CONVERTER USB TYPE-C™ 2.0 MALE TO LVTTL 3.3 V 6 PIN PIN HEADER FEMALE SEPARATE 2.0 M
Brand: DELOCK
SKU: 903994201
Price: 29.95 EUR
Availability: OutOfStock

29,95 €

DeLOCK 63946. Color del producto: Negro, Longitud de cable: 2 m, Conector 1: USB 2.0 Type-C. Cantidad por paquete: 1 pieza(s)

Referencia:903994201
PN:DELOC-63946
EAN:4043619639465
Cantidad

Recíbelo en 6 a 9 días hábiles

Descripción
Detalles del producto

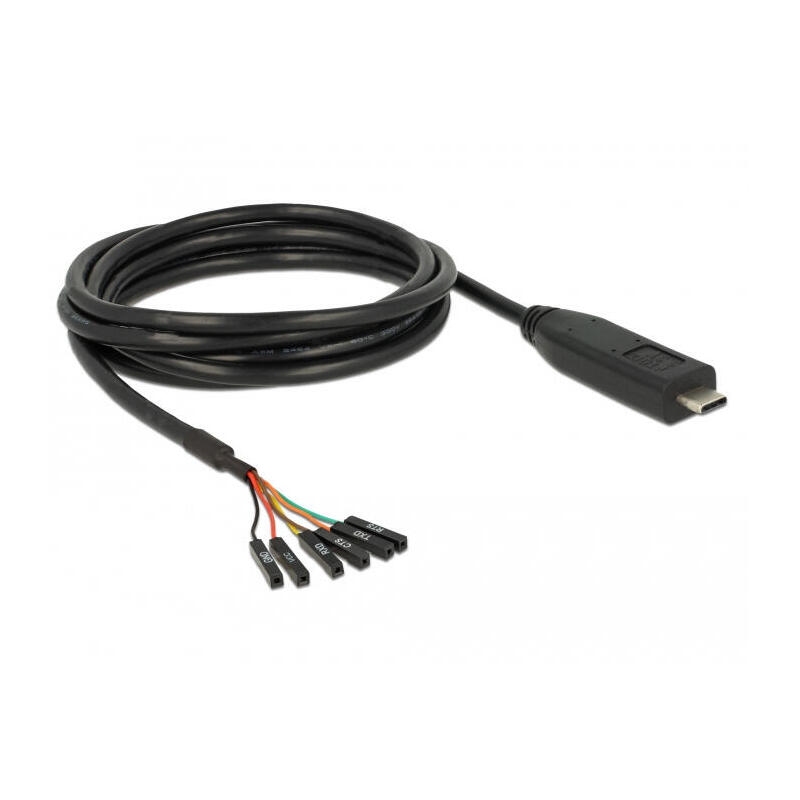

delock 63946 Converter USB Type-C™ 2.0 male to LVTTL 3.3 V 6 pin pin header female separate 2.0 m

Descripción

This USB Type-C™ 2.0 to LVTTL converter by Delock can be connected directly to GPIO (General purpose input/output) connectors or UART (Universal Asynchronous Receiver/Transmitter) interfaces. The converter is suitable for applications on single-board computers, controllers, FPGAs, MCUs and in circuit electronics etc.

Detalles tecnicos

Connectors:
1 x USB Type-C™ 2.0 male >
1 x LVTTL 3.3 V 6 pin pin header female separate
Pitch: 2.54 mm
Chipset: FTDI FT232RL
Compatible to UHCI / OHCI / EHCI controller
Data transfer rate up to 3 Mbps
Databits: 7 or 8
Stop bits: 1 or 2
Parity: none, space, even, odd, mark
Flow control: none, hardware RTS / CTS, software XON / XOFF
Signals: RXD (YE), TXD (OG), CTS (BN), RTS (GN) and GND (BK), VCC (RD)
Output voltage: 5 V
FIFO:
128 Byte - RX
256 Byte - TX
Cable type: UL AWM 2464 VW-1 Flame Test
Cable gauge: 26 AWG
Cable length incl. connectors: ca. 2.0 m
Operating temperature: -20 °C ~ 80 °C

Requisitos del sistema

Windows 7/7-64/8.1/8.1-64/10/10-64/11/Windows Server 2012 R2/Windows Server 2016,
ex Linux Kernel 2.6, ex Mac OS 10.9
PC or laptop with a free USB Type-C™ port

Contenido del paquete

USB Type-C™ 2.0 LVTTL cable
User manual

Paquete

Bolsa de plástico con cremallera

Referencia 903994201

Ficha técnica

COLOR DEL PRODUCTO: NEGRO
CONECTOR 1: USB 2.0 TYPE-C
CONECTOR 2: 6 X PIN PIN HEADER SEPARATE
LONGITUD DE CABLE: 2 M

Estado Nuevo
