DELOCK 63497 ADAPTER CABLE USB 2.0 TYPE-A TO SERIAL RS-232 WITH 3 OPEN WIRES 0.5 M

31,45 €
DeLOCK 63497. Color del producto: Negro, Longitud de cable: 0,5 m, Conector 1: USB 2.0. Cantidad por paquete: 1 pieza(s)
Referencia:904092420
PN:DELOC-63497
EAN:4043619634972
Cantidad
Recíbelo en 6 a 9 días hábiles

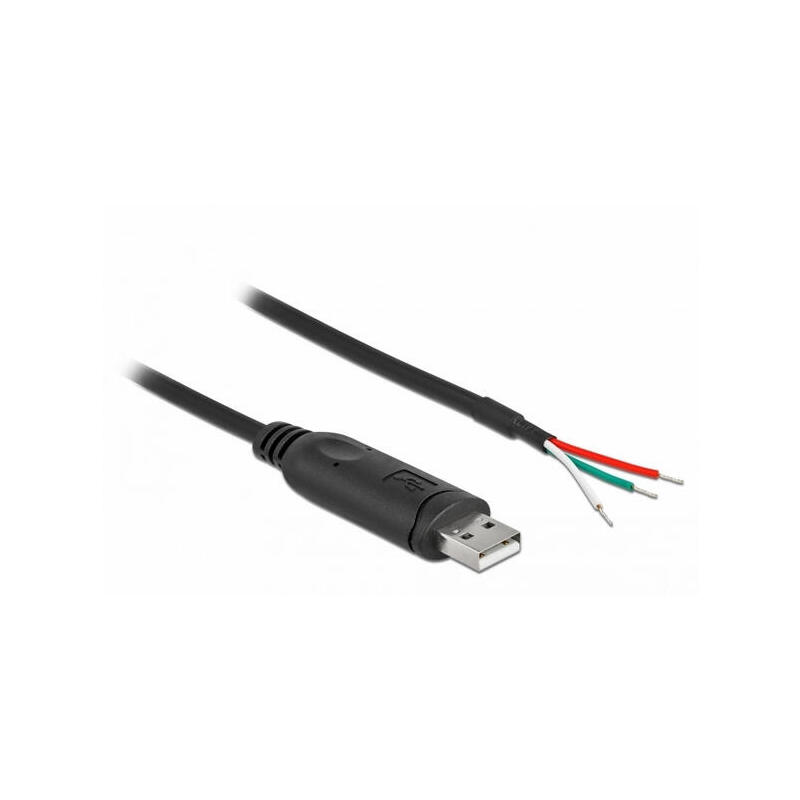

delock 63497 Adapter cable USB 2.0 Type-A to Serial RS-232 with 3 open wires 0.5 m

Descripción

This USB 2.0 Type-A to serial RS-232 adapter cable by Delock is suitable as a connection cable between a device with USB 2.0 and a device with RS-232 port. With the tinned open cable ends, the connection can be made directly to the RS-232 device connector or flexiible to various terminal blocks. In addition, it can be used to produce individual adapters and cable assemblies.


Detalles tecnicos

  • Connectors:
    1 x USB Type-A male
    1 x Serial RS-232 3 x open wires (tinned)
  • Chipset: FTDI FT232R
  • Compatible to UHCI / OHCI / EHCI controller
  • Databits: 7 or 8
  • Stop bits: 1 or 2
  • Parity: none, space, even, odd, mark
  • Data transfer rate up to 230.4 Kbps
  • Pinout: RXD (red), TXD (white), GND (green)
  • ESD protection IEC 61000-4-2
    HCP & VCP: ±4kV
    Air Discharge: ±8kV
    Contact Discharge: ±4kV
  • Cable diameter: ca. 5 mm
  • Cable gauge: 26 AWG
  • Conductor: stranded copper wire
  • Isolation: PVC
  • Cable length incl. connectors: ca. 0.5 m
  • Colour: black
  • Operating temperature: -10 °C ~ 80 °C


Requisitos del sistema

  • Mac OS 10.13 or above
  • Linux Kernel 2.6 or above
  • Windows 8.1/8.1-64/10/10-64/11
  • Windows Server 2012 / Server 2012R2 / Server 2016
  • PC or laptop with a free USB Type-A port


Contenido del paquete

  • USB Type-A to 1 x serial Adapter


Paquete

  • Bolsa de plástico con cremallera


RS-232 Here you can find information about RS-232

904092420

Ficha técnica

COLOR DEL PRODUCTO
NEGRO
CONECTOR 1
USB 2.0
CONECTOR 2
RS-232
GÉNERO DEL CONECTOR 1
MACHO
LONGITUD DE CABLE
0,5 M
