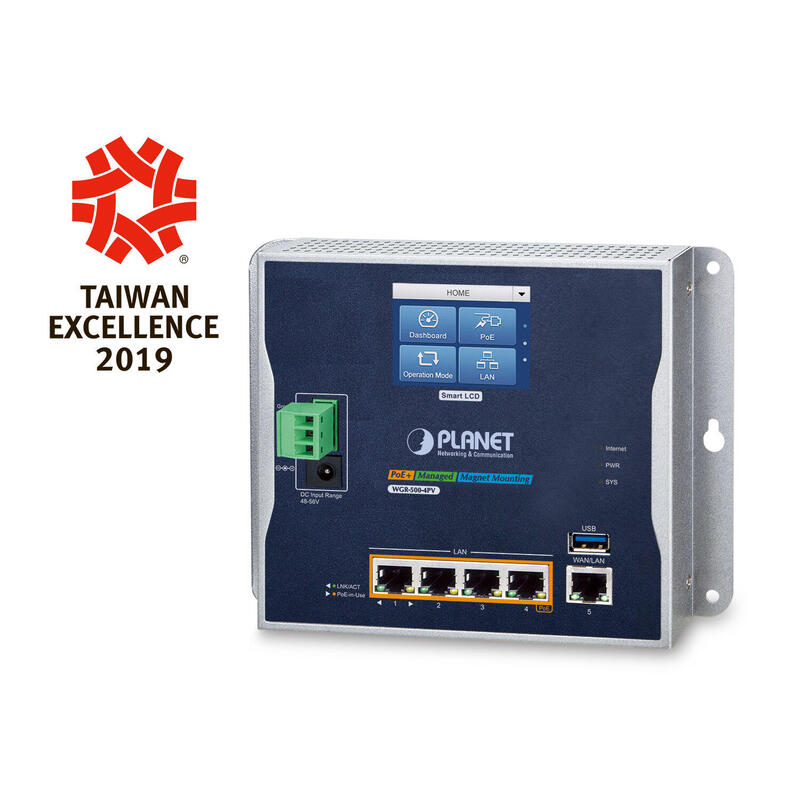

PLANET IP30 INDUSTRIAL WALL-MOUNT ROUTER GIGABIT ETHERNET AZUL, GRIS

Name: PLANET IP30 INDUSTRIAL WALL-MOUNT ROUTER GIGABIT ETHERNET AZUL, GRIS
Brand: PLANET
SKU: 901342261
Price: 297.4499999999979 EUR
Availability: OutOfStock

297,45 €

PLANET IP30 Industrial Wall-mount. Estándares de red: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u, Tipo de interfaz ethernet: Gigabit Ethernet. Color del producto: Azul, Gris. Ancho: 180 mm, Profundidad: 140 mm, Altura: 24,4 mm

Referencia:901342261
PN:WGR-500-4PV
EAN:4711605283878
Cantidad

Recíbelo en 6 a 12 días hábiles.

Descripción
Detalles del producto

PLANET IP30 Industrial Wall-mount router Gigabit Ethernet Azul, Gris

Physical Port
4-port 10/100/1000BASE-T RJ45 with IEEE 802.3af / 802.3at PoE injector
1-port 10/100/1000BASE-T RJ45 for WAN port or LAN port interface (router mode or switch mode)
1 x USB 3.0 port for backup and restoration of configuration file
Power over Ethernet
Up to 4 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Remote power feeding up to 100 meters
PoE Management
PoE Port status monitoring
Total PoE power budget control
Per port PoE function enable/disable
PoE Port power feeding priority
Per PoE port power limit
PD classification detection
PoE alive check
Industrial Case and Installation
Compact size with fixed wall mounting, magnetic wall mounting or DIN-rail mounting
IP30 metal case
Supports -10 to 60 degrees C operating temperature
Supports ESD 6KV DC Ethernet protection
Dual power input design
48V~56V DC wide power input with polarity reverse protect function
3-pin terminal block or DC jack connector
Layer 2 Features
Supports IEEE 802.1Q tagged VLAN
Supports IEEE 802.1D Spanning Tree Protocol (STP)
Layer 3 IP Routing Features
IPv6 support
WAN Internet types: Dynamic IP(DHCP Client), static IP, PPPoE, L2TP, PPTP
Static and dynamic (RIP1 and 2) routing
Supports Port Forwarding, DMZ, and UPnP for various networking applications
IP/MAC-based bandwidth control
Supports Dynamic DNS and PLANET DDNS
Security
Port filtering lets you either allow or prevent which application can access the Internet
MAC filtering allows you to include or exclude computers and devices based on their MAC address
URL filtering allows you to control access to Internet websites in an URL list
IP source guard prevents IP spoofing attacks
DoS attack prevention
Management
Management Interfaces
2.4-inch color LCD touch screen
Web GUI management
Static and DHCP for IP address assignment
System Maintenance
Firmware upload/download via HTTP
Hardware reset button for system reboot or reset to factory default
NTP Network Time Protocol
Event message logging to remote syslog server
PLANET Smart Discovery Utility for deployment management

Conexión WAN
Ranura para tarjeta SIM	No
Conexión
Estándares de red	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Tipo de interfaz ethernet	Gigabit Ethernet
Auto MDI / MDI-X	Si
Características de administración
Administación basada en web	Si
Puertos e Interfaces
Ethernet LAN (RJ-45) cantidad de puertos	5
Cantidad de puertos USB	1
Protocolos
DHCP, cliente	Si
Seguridad
Cortafuegos	Si
Diseño
Color del producto	Azul, Gris
Montaje de pared	Si
Indicadores LED	Si
Control de energía
Energía sobre Ethernet (PoE)	Si
Condiciones ambientales
Intervalo de temperatura operativa	-10 - 60 °C
Intervalo de temperatura de almacenaje	-20 - 70 °C
Intervalo de humedad relativa para funcionamiento	5 - 95%
Intervalo de humedad relativa durante almacenaje	5 - 95%
Peso y dimensiones
Ancho	180 mm
Profundidad	140 mm
Altura	24,4 mm
Peso	728 g

Referencia 901342261

Ficha técnica

COLOR DEL PRODUCTO: AZUL, GRIS
ENERGÍA SOBRE ETHERNET (POE): SI
ETHERNET LAN (RJ-45) CANTIDAD DE PUERTOS: 5

Estado Nuevo
