DELOCK 93237 CONVERTER 3G-SDI TO HDMI

102,45 €
DeLOCK 93237. Conector 1: BNC, Conector 2: BNC, HDMI-A. Color del producto: Negro
Referencia:903906801
PN:DELOC-93237
EAN:4043619932375
Cantidad
Recíbelo en 3 a 6 días hábiles

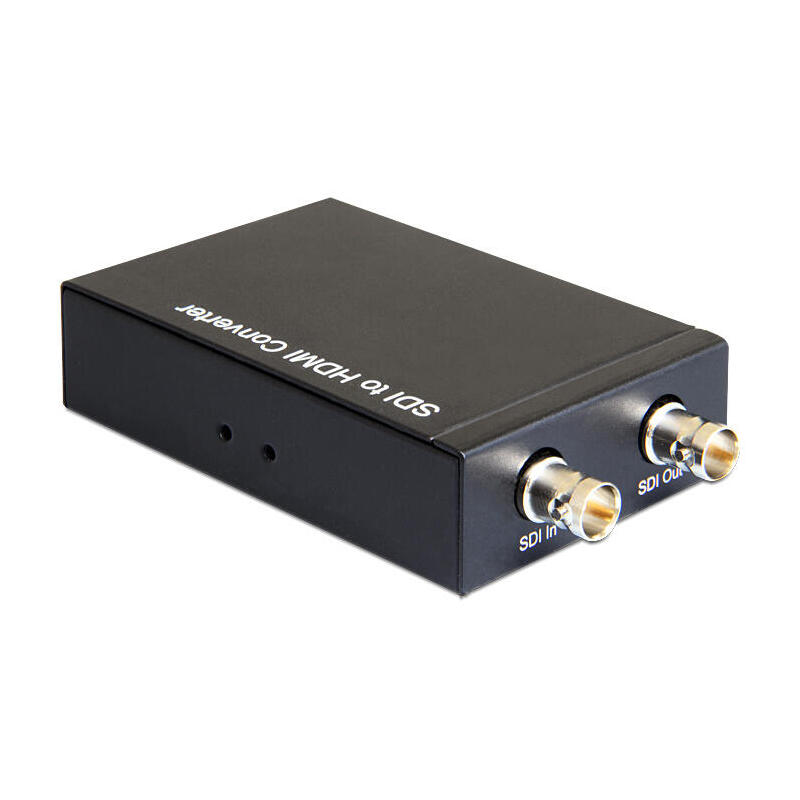

delock 93237 Converter 3G-SDI to HDMI

Descripción

This Delock converter can be used to convert an HD- or 3G-SDI signal to an HDMI signal. You can connect e. g. a camera with HD-SDI output to an HDMI monitor. The SDI signal is transmitted via a conventional 75 Ohm coaxial cable with BNC connectors.


Detalles tecnicos

  • Connector:
    Input:
    1 x BNC female (SDI)
    Output:
    1 x BNC female (SDI, pass-through)
    1 x HDMI-A female
  • Chipset: GV7601
  • Supports 3G-SDI Level A
  • Supported resolution:
    SD 480i, 525i and 625i
    HD 720p 24, 25, 30, 50 and 60 Hz
    HD 1080i 50, 60 Hz
    HD 1080p 24, 25, 30, 50 and 60 Hz
  • Supported data rate: 270 Mb/s ~ 2.97 Gb/s
  • Supports 8 channels of 48 kHz PCM audio
  • Robust metal housing
  • Power consumption: max. 2.5 W
  • Dimensions (LxWxH): ca. 100 x 70 x 25 mm


Especificaciones de la fuente de alimentación

  • Wall power supply
  • Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
  • Output: 5 V / 1 A
  • Ground outside, plus inside
  • Dimensions:
    inside: ø ca. 2.1 mm
    outside: ø ca. 5.5 mm
    length: ca. 9 mm

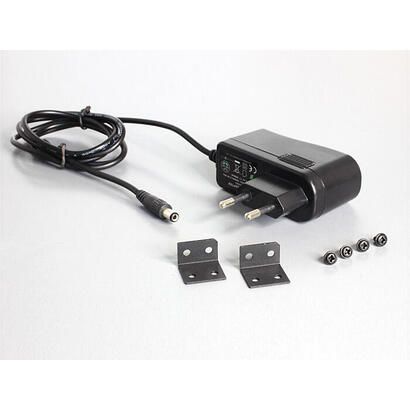

Contenido del paquete

  • 3G-SDI > HDMI Converter
  • Mounting brackets and screws
  • Power supply


Paquete

  • Box


Aviso de revisión

08/2021 New power supply

903906801

Ficha técnica

COLOR DEL PRODUCTO
NEGRO
CONECTOR 1
BNC
CONECTOR 2
BNC, HDMI-A
GÉNERO DEL CONECTOR 1
HEMBRA
