DELOCK 86180 POE+ MEDIA CONVERTER 10/100/1000BASE-T TO SFP

80,45 €
DeLOCK 86180. Rango máximo de transferencia de datos: 1000 Mbit/s, Estándares de red: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z. Conector fibra óptica: SFP, Tecnología de conectividad: Alámbrico. Indicadores LED: Estado, Color del producto: Negro, Material de la carcasa: Metal. Voltaje de entrada: 100 - 240 V, Frecuencia...
Referencia:903914490
PN:DELOC-86180
EAN:4043619861804
Cantidad
Recíbelo en 5 a 12 días hábiles

delock 86180 PoE+ Media Converter 10/100/1000Base-T to SFP

Descripción

This Gigabit Ethernet Media Converter by Delock can be used to expand a network with an optical fiber interface. In the SFP slot, various optional 1 Gb/s SFP modules by Delock can be used. The RJ45 port supports Power over Ethernet according to IEEE802.3af / 802.3at, so PoE-enabled devices, such as an IP camera or a PoE splitter, can be supplied with power via the network cable.


Detalles tecnicos

  • Connectors:
    1 x SFP slot for 1000Base-X SFP module (SFP module not included)
    1 x RJ45 jack for 10/100/1000 Mb/s Base-T (PoE+)
    1 x DC jack 5.5 x 2.1 mm (power)
  • Data transfer rate up to 1 Gb/s
  • 6 LEDs for status monitoring
  • LFP (Link Fault Passthrough)
  • Supports IEEE 802.3 / 802.3u / 802.3ab / 802.3z
  • Supports IEEE 802.3at (PoE+) and 802.3af (PoE)
  • Spare-Pairs power transmission (Mode B, pairs 4/5 and 7/8)
  • Power output: max. 30 W
  • Metal housing
  • Fanless
  • Operating temperature: -20 °C ~ 60 °C
  • Dimensions (LxWxH): ca. 95 x 71 x 26 mm

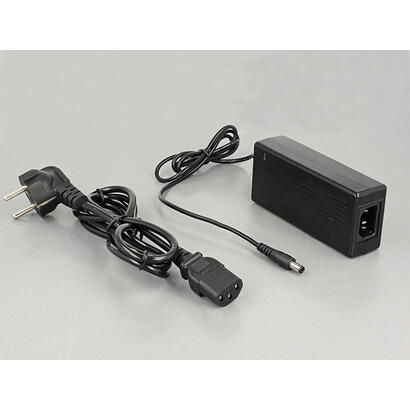

Especificaciones de la fuente de alimentación

  • Power supply with IEC connector
  • Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
  • Output: DC 48 V / 1.25 A
  • Ground outside, plus inside
  • Dimensions:
    inside: ø ca. 2.1 mm
    outside: ø ca. 5.5 mm
    length: ca. 9 mm


Requisitos del sistema

  • 1000Base-X SFP module
  • Device with one free RJ45 port


Contenido del paquete

  • PoE Media Converter
  • Power supply
  • Power cord
  • User manual


Paquete

  • White Box

903914490

Ficha técnica

COLOR DEL PRODUCTO
NEGRO
ENERGÍA SOBRE ETHERNET (POE)
SI
ETHERNET LAN (RJ-45) CANTIDAD DE PUERTOS
1
TECNOLOGÍA DE CONECTIVIDAD
ALÁMBRICO
