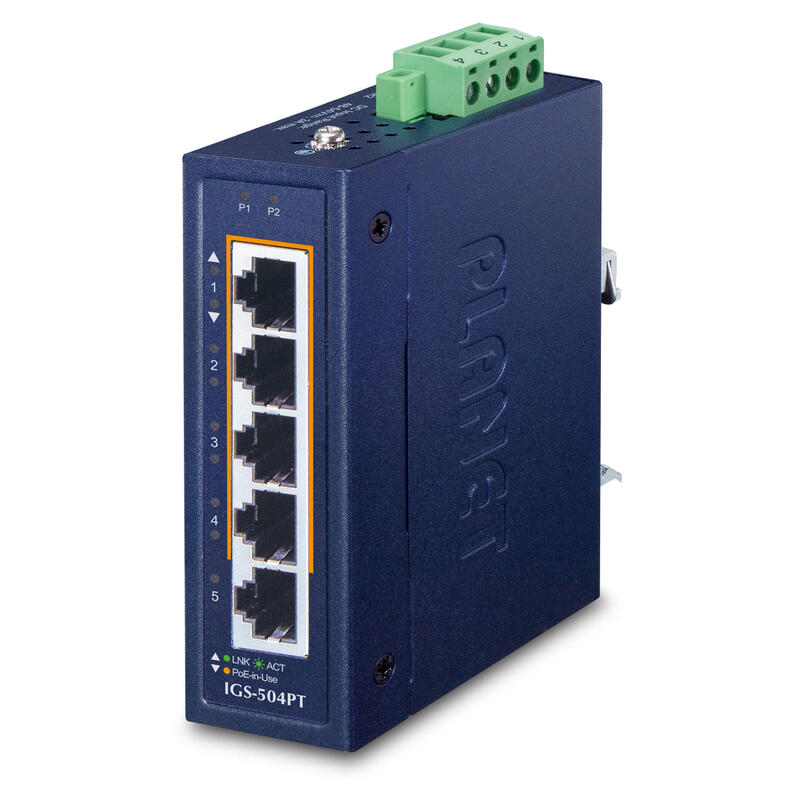

PLANET 10/100/1000T 802.3AT POE + NO ADMINISTRADO GIGABIT ETHERNET (10/100/1000) ENERGÍA SOBRE ETHERNET (POE) AZUL

214,45 €
PLANET 10/100/1000T 802.3at PoE +, No administrado, Gigabit Ethernet (10/100/1000), Energía sobre Ethernet (PoE), Montaje de pared
Referencia:903953331
PN:IGS-504PT
EAN:4711605286046
Cantidad
Recíbelo en 6 a 12 días hábiles.

PLANET 10/100/1000T 802.3at PoE + No administrado Gigabit Ethernet (10/100/1000) Energía sobre Ethernet (PoE) Azul

  • Interface
  • 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 4 ports of IEEE 802.3af/at devices powered
  • Up to 120-watt PoE budget
  • Supports PoE power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100m
  • Layer 2 Switching
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 2K MAC address table size
  • 9K jumbo frame
  • IEEE 802.1Q VLAN transparency
  • Automatic address learning and address aging
  • Industrial Case and Installation
  • IP30 metal case
  • DIN-rail, wall-mount or side wall-mount design
  • 48~54V DC redundant power with reverse polarity protection
  • Supports 6KV DC Ethernet ESD protection
  • -40 to 75 degrees C operating temperature
Características de administración
Tipo de interruptorNo administrado
Puertos e Interfaces
Cantidad de puertos básicos de conmutación RJ-45 Ethernet5
Puertos tipo básico de conmutación RJ-45 EthernetGigabit Ethernet (10/100/1000)
Conexión
Estándares de redIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Soporte 10GNo
Auto MDI / MDI-XSi
Transmisión de datos
Capacidad de conmutación10 Gbit/s
Rendimiento7,4 Mpps
Tabla de direcciones MAC2000 entradas
Guardar y remitirSi
Jumbo Frames, soporteSi
Tramas Jumbo9000
Diseño
Montaje en rackNo
Color del productoAzul
Material de la carcasaMetal
Código IP (International Protection)IP30
Montaje de paredSi
Montaje en carril DINSi
CertificaciónFCC Part 15 Class A, CE
Control de energía
Corriente de entrada3 A
Alimentación a través de Ethernet (PoE)
Energía sobre Ethernet (PoE)Si
Potencia a través de Ethernet (PoE) Presupuesto120 W
Condiciones ambientales
Intervalo de temperatura operativa-40 - 75 °C
Intervalo de temperatura de almacenaje-40 - 75 °C
Intervalo de humedad relativa para funcionamiento5 - 90%
Intervalo de humedad relativa durante almacenaje5 - 90%
Peso y dimensiones
Ancho30 mm
Profundidad70 mm
Altura104 mm
Peso260 g

PLANET 10/100/1000T 802.3at PoE +. Tipo de interruptor: No administrado. Puertos tipo básico de conmutación RJ-45 Ethernet: Gigabit Ethernet (10/100/1000), Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 5. Tabla de direcciones MAC: 2000 entradas, Capacidad de conmutación: 10 Gbit/s. Estándares de red: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x. Energía sobre Ethernet (PoE). Montaje de pared

903953331

Ficha técnica

CANTIDAD DE PUERTOS BÁSICOS DE CONMUTACIÓN RJ-45 ETHERNET
5
COLOR DEL PRODUCTO
AZUL
ENERGÍA SOBRE ETHERNET (POE)
SI
MONTAJE EN RACK
NO
PUERTOS TIPO BÁSICO DE CONMUTACIÓN RJ-45 ETHERNET
GIGABIT ETHERNET (10/100/1000)
TIPO DE INTERRUPTOR
NO ADMINISTRADO
