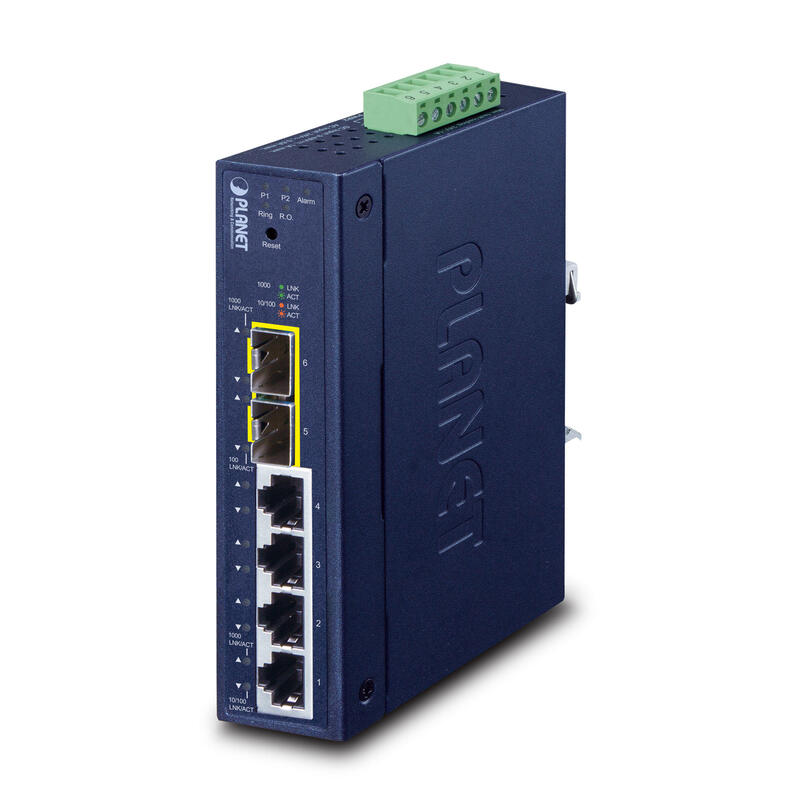

PLANET INDUSTRIAL L2/L4 4-PORT GESTIONADO L2/L4 GIGABIT ETHERNET (10/100/1000) AZUL

176,45 €
PLANET Industrial L2/L4 4-Port, Gestionado, L2/L4, Gigabit Ethernet (10/100/1000), Bidireccional completo (Full duplex), Montaje de pared
Referencia:903970450
PN:IGS-4215-4T2S
EAN:4711605286466
Cantidad
Recíbelo en 4 a 7 días hábiles

PLANET Industrial L2/L4 4-Port Gestionado L2/L4 Gigabit Ethernet (10/100/1000) Azul

  • Physical Port
  • 4-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
  • 2-port 100/1000BASE-X SFP transceiver type auto detection
  • Industrial Case and Installation
  • Dual power input, redundant power with reverse polarity protection
  • DC 9 to 48V input or AC 24V input
  • Active-active redundant power failure protection
  • Backup of catastrophic power failure on one supply
  • Fault tolerance and resilience
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • Supports ESD 6KV DC Ethernet protection
  • Supports -40 to 75 degrees C operating temperature
  • Free fall, shock-proof and vibration-proof for industries
  • Switching
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 8K MAC address table size
  • 9K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
  • Layer 2 Features
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Up to 256 VLAN groups, out of 4096 VLAN IDs
  • Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
  • Private VLAN (Protected port)
  • Protocol-based VLAN
  • MAC-based VLAN
  • Voice VLAN
  • GVRP (GARP VLAN Registration Protocol)
  • Supports Spanning Tree Protocol
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
  • BPDU Guard
  • Supports Link Aggregation
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (static trunk)
  • Up to 3 trunk groups
  • Up to 6 ports per trunk group with 12Gbps bandwidth
  • Provides port mirror (many-to-1)
  • IPv6 MAC/VLAN/Multicast Address Table
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)
  • Link Layer Discovery Protocol (LLDP)
  • Quality of Service
  • Ingress/Egress Rate Limit per port bandwidth control
  • Support 8 priority queues on all switch ports
  • Traffic classification
  • IEEE 802.1p CoS
  • IP TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • IP TCP/UDP port number
  • Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic-policing on the switch port
  • DSCP remarking
  • Security
  • Storm Control support
  • Broadcast/Multicast/Unicast
  • Authentication
  • IEEE 802.1X port-based network access authentication
  • Built-in RADIUS client to cooperate with the RADIUS servers
  • DHCP Relay and DHCP Option 82
  • RADIUS/TACACS+ users access authentication
  • Access Control List
  • IPv4/IPv6 IP-based ACL
  • IPv4/IPv6 IP-based ACE
  • MAC-based ACL
  • MAC-based ACE
  • MAC Security
  • Static MAC
  • MAC filtering
  • Port security for source MAC address entries filtering
  • DHCP snooping to filter distrusted DHCP messages
  • Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
  • IP source guard prevents IP spoofing attacks
  • IP address access management to prevent unauthorized intruder
Características de administración
Tipo de interruptorGestionado
Capa del interruptorL2/L4
Calidad de servicio (QoS) soporteSi
Administación basada en webSi
Administrado a través de la nubeSi
Inspección ARPSi
Puertos e Interfaces
Cantidad de puertos básicos de conmutación RJ-45 Ethernet4
Puertos tipo básico de conmutación RJ-45 EthernetGigabit Ethernet (10/100/1000)
Número de módulos SFP instalados2
Conexión
Estándares de redIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Soporte 10GNo
Bidireccional completo (Full duplex)Si
Transmisión semidúplexSi
Auto MDI / MDI-XSi
Protocolo de árbol de expansiónSi
Admite dirección MAC auto-learningSi
Admite dirección MAC auto-agingSi
Soporte VLANSi
Número de VLANs4096
Transmisión de datos
Capacidad de conmutación12 Gbit/s
Rendimiento8,9 Mpps
Tabla de direcciones MAC8000 entradas
Guardar y remitirSi
Jumbo Frames, soporteSi
Tramas Jumbo9000
Seguridad
MAC, filtro de direccionesSi
Funciones de multidifusión
Multidifusión, soporteSi
Diseño
Color del productoAzul
Material de la carcasaMetal
Botón de restaurarSi
Indicadores LEDSi
Código IP (International Protection)IP30
Montaje de paredSi
Montaje en carril DINSi
CertificaciónFCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Control de energía
Fuente de energíaAC/DC
Alimentación a través de Ethernet (PoE)
Energía sobre Ethernet (PoE)No
Condiciones ambientales
Intervalo de temperatura operativa-40 - 75 °C
Intervalo de temperatura de almacenaje-40 - 85 °C
Intervalo de humedad relativa para funcionamiento5 - 95%
Intervalo de humedad relativa durante almacenaje5 - 95%
Peso y dimensiones
Ancho32 mm
Profundidad87,8 mm
Altura135 mm
Peso400 g

PLANET Industrial L2/L4 4-Port. Tipo de interruptor: Gestionado, Capa del interruptor: L2/L4. Puertos tipo básico de conmutación RJ-45 Ethernet: Gigabit Ethernet (10/100/1000), Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 4, Número de módulos SFP instalados: 2. Bidireccional completo (Full duplex). Tabla de direcciones MAC: 8000 entradas, Capacidad de conmutación: 12 Gbit/s. Estándares de red: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE.... Montaje de pared

903970450

Ficha técnica

CANTIDAD DE PUERTOS BÁSICOS DE CONMUTACIÓN RJ-45 ETHERNET
4
COLOR DEL PRODUCTO
AZUL
ENERGÍA SOBRE ETHERNET (POE)
NO
PUERTOS TIPO BÁSICO DE CONMUTACIÓN RJ-45 ETHERNET
GIGABIT ETHERNET (10/100/1000)
TIPO DE INTERRUPTOR
GESTIONADO
