PLANET IP30 INDUSTRIAL 1-PORT SERVIDOR SERIE

155,95 €
PLANET IP30 Industrial 1-Port, Sistema, 392 g, 32 x 87,8 x 135 mm, -40 - 75 °C, -40 - 85 °C, 5 - 95%
Referencia:904053503
PN:ICS-2100T
EAN:4711605285100
Cantidad
Recíbelo en 4 a 7 días hábiles

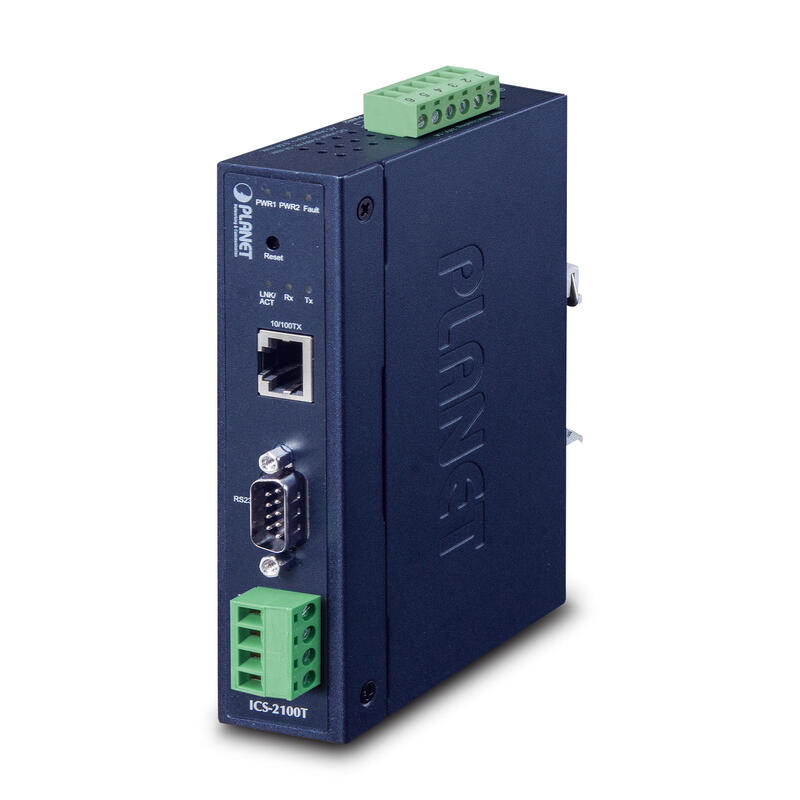

PLANET IP30 Industrial 1-Port servidor serie

  • Serial Interface
  • One DB9 interface that supports RS232
  • One terminal block interface that supports 2-wire RS485 and 4-wire RS422/RS485 standards
  • Asynchronous serial data rates up to 921600bps
  • Data modes include VCOM, RFC2217, TCP Server, TCP Client, UDP, Remote Pair, Modbus converter server / client and Serial Telnet modes
  • Ethernet Interface
  • 1-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
  • Management
  • IPv4 and IPv6 dual stack management
  • Remote Management Interfaces
  • IP-based Web management
  • Telnet console management- Windows-based VCOM utility supports searching, monitoring and configuration setting
  • IP NTP (Network Time Protocol) and DNS management
  • Standard TCP/IP interface and versatile operation modes
  • Software Protocol supports ARP, ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client
  • Serial Operation mode selected via management interface
  • Pair Connection mode for connecting two serial devices over a network
  • Allows a maximum of 4 hosts to be accessed as TCP client mode
  • Firmware upgrade via HTTP protocol
  • Accessible IP security control to prevent illegal users
  • Event notification
  • Remote Syslog server
  • SNMP trap
  • Relay output alarm
  • DHCP client for IP address assignment
  • PLANET Smart Discovery utility automatically finds the client devices on the network
  • Industrial Case and Installation
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • Redundant power design
  • 9 to 48V DC / 24V AC, redundant power with reverse polarity protection
  • Supports 6000 VDC Ethernet ESD protection
  • Supports -40 to 75 degrees C operating temperature
  • Free fall, shock-proof and vibration-proof for industries
  • Supports extensive LED indicators for network diagnosis
  • Reset button for resetting to factory default
Detalles técnicos
Puerto serial2
Estándares de redIEEE 802.3,IEEE 802.3u
Auto MDI / MDI-XSi
Bits de datos5,6,7,8
Tipo de control de flujoDTR/DSR,RTS/CTS,XON/XOFF
Bit de paridadEven, Mark, No, Unidad de disco óptico (ODD), Espacio
Bits de parada1,1.5,2
CertificaciónFCC Part 15 Class A, CE Certification Class A IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration)
Indicación
Indicadores LEDSistema
LED de energíaSi
Link / Act LEDSi
Peso y dimensiones
Peso392 g
Dimensiones (Ancho x Profundidad x Altura)32 x 87,8 x 135 mm
Condiciones ambientales
Intervalo de temperatura operativa-40 - 75 °C
Intervalo de temperatura de almacenaje-40 - 85 °C
Intervalo de humedad relativa para funcionamiento5 - 95%
Intervalo de humedad relativa durante almacenaje5 - 95%
Diseño
Color del productoAzul
Material de la carcasaMetal
Código IP (International Protection)IP30

PLANET IP30 Industrial 1-Port. Indicadores LED: Sistema. Peso: 392 g, Dimensiones (Ancho x Profundidad x Altura): 32 x 87,8 x 135 mm. Color del producto: Azul, Material de la carcasa: Metal, Código IP (International Protection): IP30

904053503

Ficha técnica

COLOR DEL PRODUCTO
AZUL
