planet-ip30-industrial-8-port-no-administrado-gigabit-ethernet-101001000-energia-sobre-ethernet-poe-gris
  • planet-ip30-industrial-8-port-no-administrado-gigabit-ethernet-101001000-energia-sobre-ethernet-poe-gris

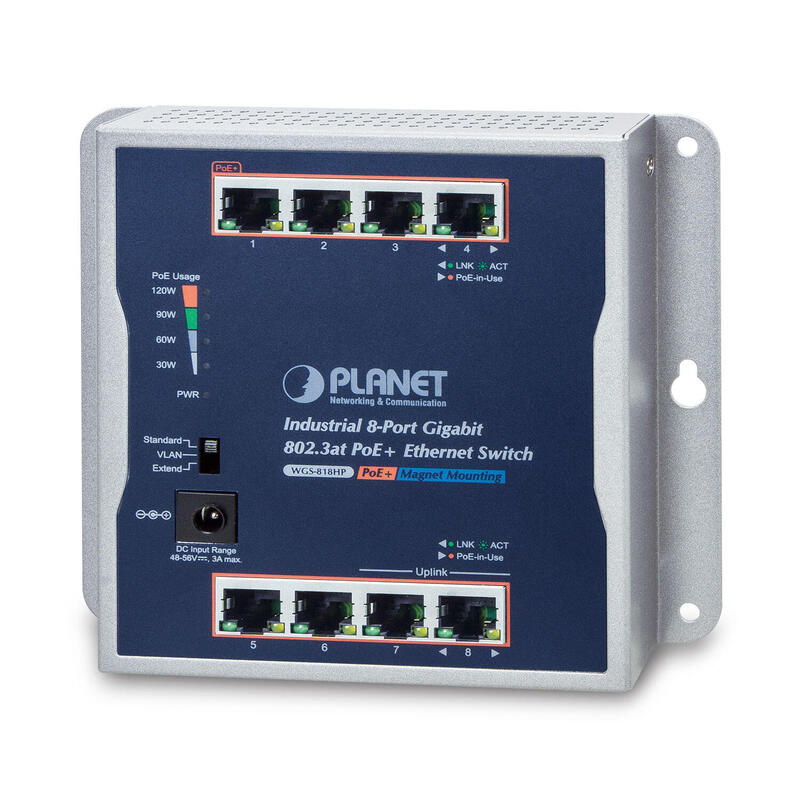

PLANET IP30 INDUSTRIAL 8-PORT NO ADMINISTRADO GIGABIT ETHERNET (10/100/1000) ENERGÍA SOBRE ETHERNET (POE) GRIS

139,45 €
PLANET IP30 Industrial 8-Port, No administrado, Gigabit Ethernet (10/100/1000), Energía sobre Ethernet (PoE), Montaje en rack, Montaje de pared
Referencia:904053633
PN:WGS-818HP
EAN:4711605285063
Cantidad
Recíbelo en 6 a 12 días hábiles.

PLANET IP30 Industrial 8-Port No administrado Gigabit Ethernet (10/100/1000) Energía sobre Ethernet (PoE) Gris

  • 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 8-Port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE
  • Up to 8 ports of IEEE 802.3at devices powered
  • Supports PoE Power up to 30.8 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 250 meters (in extend mode)
  • High performance Store and Forward architecture
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 9K jumbo frame supports in 1000Mbps duplex mode
  • Automatic address learning and address aging
  • Compact size; fixed wall mounting, magnetic wall mounting or DIN-rail mounting
  • IP30 metal chassis
  • Supports -20 to 60 degrees C operating temperature
  • LED indicators for real-time PoE usage
  • 48V~56V DC input range
Características de administración
Tipo de interruptorNo administrado
Puertos e Interfaces
Cantidad de puertos básicos de conmutación RJ-45 Ethernet8
Puertos tipo básico de conmutación RJ-45 EthernetGigabit Ethernet (10/100/1000)
Conexión
Estándares de redIEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Soporte 10GNo
Admite dirección MAC auto-learningSi
Admite dirección MAC auto-agingSi
Diseño
Montaje en rackSi
ApilableSi
Color del productoGris
Indicadores LEDPoE, Poder
Montaje de paredSi
Montaje en carril DINSi
Control de energía
Fuente de alimentación incluidaNo
Alimentación a través de Ethernet (PoE)
Energía sobre Ethernet (PoE)Si
Condiciones ambientales
Intervalo de temperatura operativa-20 - 60 °C
Intervalo de temperatura de almacenaje-20 - 70 °C
Intervalo de humedad relativa para funcionamiento5 - 95%
Intervalo de humedad relativa durante almacenaje5 - 95%
Peso y dimensiones
Ancho148 mm
Profundidad25 mm
Altura134 mm
Peso474 g

PLANET IP30 Industrial 8-Port. Tipo de interruptor: No administrado. Puertos tipo básico de conmutación RJ-45 Ethernet: Gigabit Ethernet (10/100/1000), Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 8. Estándares de red: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z. Energía sobre Ethernet (PoE). Montaje de pared, Montaje en rack

904053633

Ficha técnica

CANTIDAD DE PUERTOS BÁSICOS DE CONMUTACIÓN RJ-45 ETHERNET
8
COLOR DEL PRODUCTO
GRIS
ENERGÍA SOBRE ETHERNET (POE)
SI
FUENTE DE ALIMENTACIÓN INCLUIDA
NO
MONTAJE EN RACK
SI
PUERTOS TIPO BÁSICO DE CONMUTACIÓN RJ-45 ETHERNET
GIGABIT ETHERNET (10/100/1000)
TIPO DE INTERRUPTOR
NO ADMINISTRADO
Nuevo
