csb-gp-1272-f2-12v-72a-gp1272f2
  • csb-gp-1272-f2-12v-72a-gp1272f2

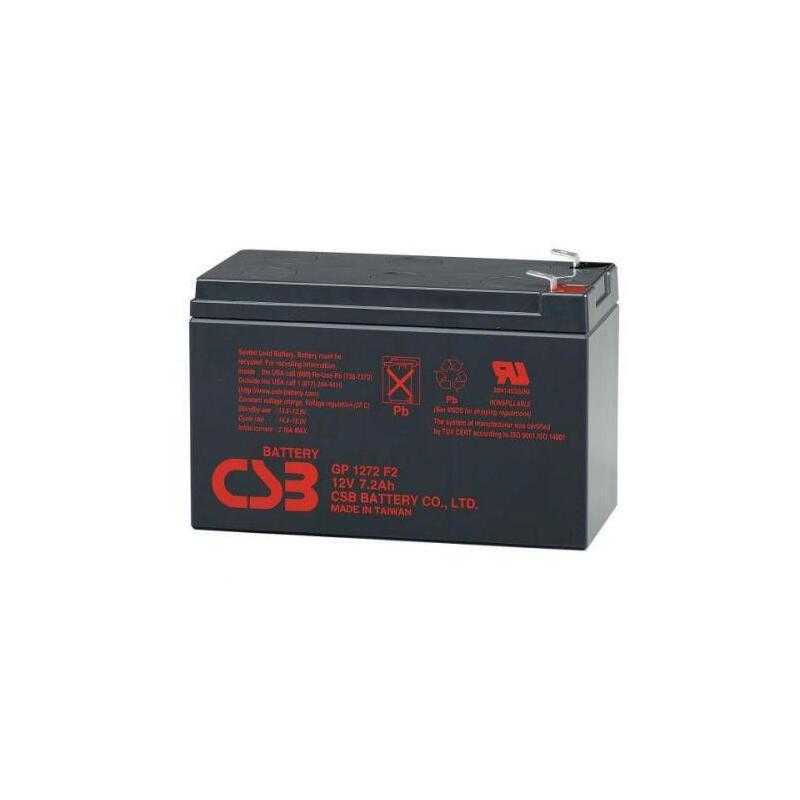

%CSB GP 1272 F2 12V 7.2A GP1272F2

22,95 €
CSB GP1272F2. Tecnología de batería: Sealed Lead Acid (VRLA), Voltaje de la pila: 12 V, Número de baterías incluidas: 1 pieza(s). Peso: 2,49 kg, Ancho: 65 mm, Altura: 100,1 mm
Referencia:904073181
PN:GP1272F2
EAN:4772081010433
Cantidad
Recíbelo en 6 a 15 días hábiles
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Especificaciones
Cells Per Unit6
Voltage Per Unit12 V
Capacity7.2 Ah @ 20hr-rate to 1.75V per cell @ 25ºC (77ºF)
WeightApprox. 2.40kg. (5.29 lbs.)
Maximum Discharge current100A/130A (5sec.)
Internal Resistance Approx.Approx. 23mO
Operating Temperature RangeDischarge:-15?~50?(5ºF~122ºF)
Charge:-15?~40?(5ºF~104ºF)
Storage:-15?~40?(5ºF~104ºF)
Nominal Operating Temperature Range25ºC ± 3ºC (77ºF ± 5ºF)
Float charging voltage13.5 to 13.8 VDC/unit Average at 25ºC (77ºF)
Recommended Maximum Charging current limit2.16A
Equalization and Cycle Service14.4 to 15.0 VDC/unit Average at 25ºC (77ºF)
Self DischargeIt should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25?
TerminalF1/F2-Faston Tab187/250
Container MaterialABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.
904073181
Nuevo
