SATA DOM 3 GB S FLASH MODUL 2 GB VERTIKAL LOW PROFILE

45,95 €
DeLOCK 54368. SDD, capacidad: 2 GB, Velocidad de lectura: 30 MB/s, Velocidad de escritura: 25 MB/s, Velocidad de transferencia de datos: 3 Gbit/s
Referencia:904091683
PN:DELOC-54368
EAN:4043619543687
Cantidad
Recíbelo en 6 a 9 días hábiles

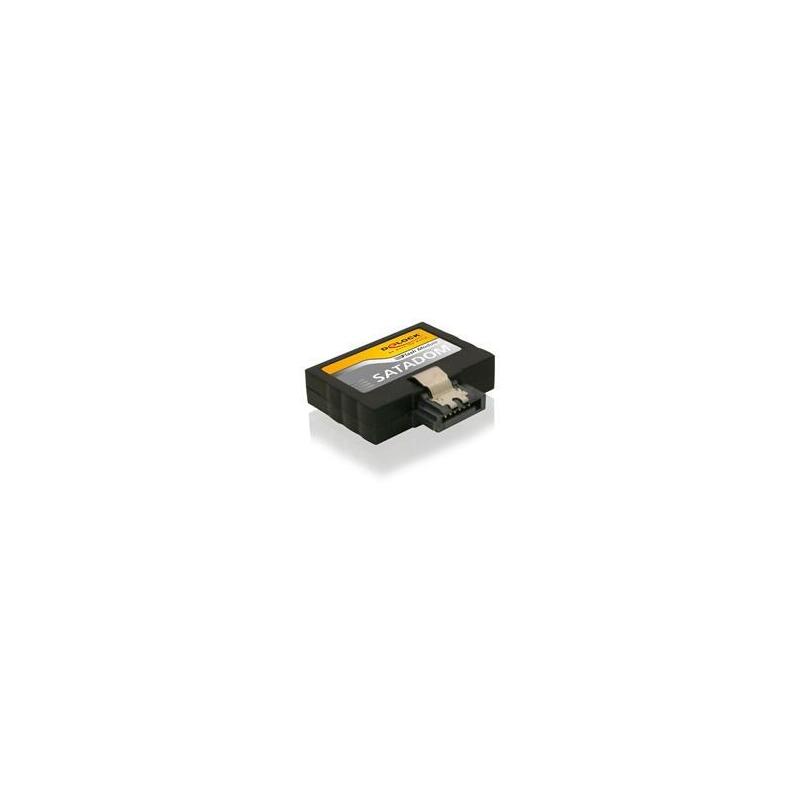

delock 54368 SATA 3 Gb/s Flash Modul 2 GB Vertical / Low Profile

Descripción

The SATA 3 Gb/s Flash Module is due to its very small size and high shock resistance ideal for application of mobile devices like IPCs, measuring systems as well as Digital Signage etc. Additional snap in will be provided by metal clips on the SATA connectors.


Detalles tecnicos

  • Capacity: 2 GB
  • 7 pin SATA 3 Gb/s interface
  • Chip: SLC (Single Level Cell)
  • Operating voltage: 5 V +/-5%
  • Operating temperature: 0 °C ~ + 70 °C
  • Power consumption: read: 230 mA
    write: 330 mA
    idle: 130 mA
  • Transfer modes: SATA 3 Gb/s, SATA 1.5 Gb/s, PIO 0~4, MDMA 0~2, UDMA 0~6
  • S.M.A.R.T. & i-S.M.A.R.T. supported
  • Maximum write cycles: 6000
  • Read: up to 30 MB/s; write: up to 25 MB/s
  • MTBF: > 3.000.000 hrs
  • Vibration: 20G / 7~2000 Hz
  • Shock: 1500 G / 0.5 ms
  • Dimension: 32.9 x 29.5 x 9.0 mm (LxWxH)


Requisitos del sistema

  • A free SATA 7 pin port
  • Power supply with a free Molex power connector


Contenido del paquete

  • 2 GB SATA Flash module
  • Power cable


Paquete

  • Antistatic cover

904091683

Ficha técnica

COLOR DEL PRODUCTO
NEGRO
TECNOLOGÍA DE CONECTIVIDAD
ALÁMBRICO
VELOCIDAD DE LECTURA
30 MB/S
VELOCIDAD DE TRANSFERENCIA DE DATOS
3 GBIT/S
