MODUL MINIPCIE I O PCIE FULL SIZE 4 X SERIELL RS-232 MIT SPANNUNGSVERSORGUNG

139,45 €
DeLOCK 95244. Interfaz de host: Mini PCI Express, Interfaz de salida: De serie, Estándar de la tarjeta de expansión: PCI 2.0. Sistema operativo Windows soportado: Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64,...
Referencia:904091714
PN:DELOC-95244
EAN:4043619952441
Cantidad
Recíbelo en 6 a 9 días hábiles

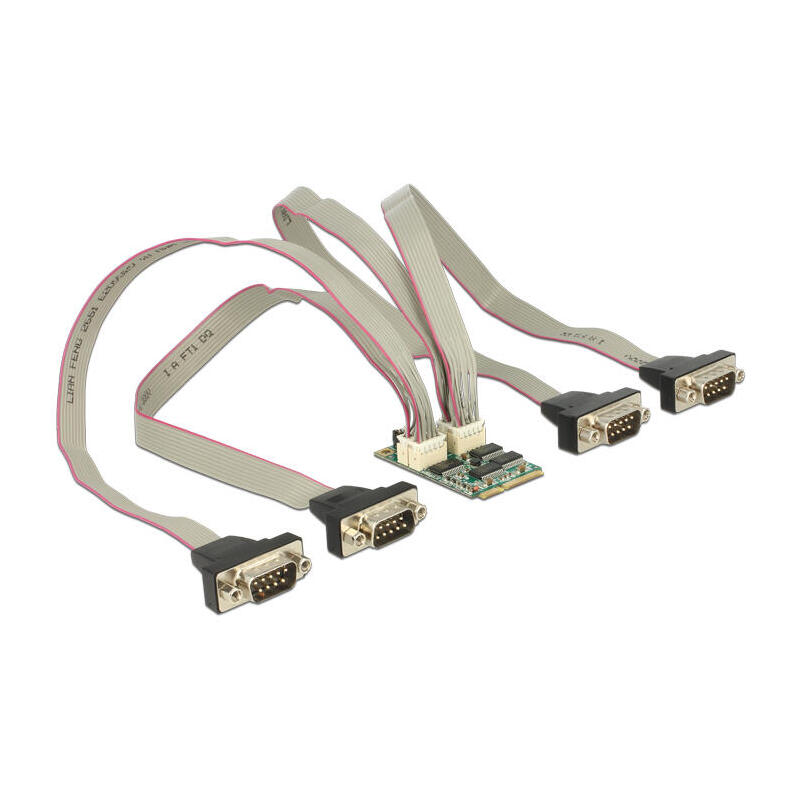

delock 95244 Module MiniPCIe I/O PCIe full size 4 x Serial RS-232 with Voltage supply

Descripción

This MiniPCIe adapter by Delock expands your system by four additional serial ports, which you can lead out through the slot bracket. You can connect different serial devices like printer, scanner, modem etc. to this adapter.


Detalles tecnicos

  • Connector:
    on the module:
    4 x 10 pin pin header male
    on the slot bracket (standard) 2 x:
    2 x serial RS-232 DB9 male with screw nuts
    or on the slot bracket (low profile) 4 x:
    1 x serial RS-232 DB9 male with screw nuts
  • Chipset: Exar XR17V354
  • Form factor: MiniPCIe full size
  • Interface: PCI Express version 2.0
  • Data transfer rate up to 921.6 Kb/s
  • Selectable voltage supply 5 V / 12 V or RI
  • Compatible with 16C550 UART
  • Datenbits: 5, 6, 7, 8
  • Signals:TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, 5V/12V/RI
  • Operating Temperature: -30 ~ 75?
  • Storage Temperature: -40 ~ 85
  • Cable length: ca. 30 cm (incl. connector)
  • Relative humidity: 0 - 95 % (non condensing)
  • Cable length incl. connectors: ca. 30 cm


Requisitos del sistema

  • Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64/10/10-64/11, Linux Kernel 2.6
  • Mainboard with a free MiniPCIe slot with a PCIe interface


Contenido del paquete

  • MiniPCIe module
  • 4 x serial connection cable (pin header > DB9)
  • Power cable
  • 2 x standard slot bracket with two DB9 ports
  • 4 x low profile slot bracket with one DB9 port
  • Driver CD
  • User manual


Paquete

  • Box
