USB 2.0 KAMERAMODUL 3,14 MEGAPIXEL 48° V5 FIXFOKUS

Name: USB 2.0 KAMERAMODUL 3,14 MEGAPIXEL 48° V5 FIXFOKUS
Brand: DELOCK
SKU: 904091720
Price: 83.94999999999976 EUR
Availability: OutOfStock

83,95 €

DeLOCK 95976. Tipo: Cámara

Referencia:904091720
PN:DELOC-95976
EAN:4043619959761
Cantidad

Recíbelo en 6 a 9 días hábiles

Descripción
Detalles del producto

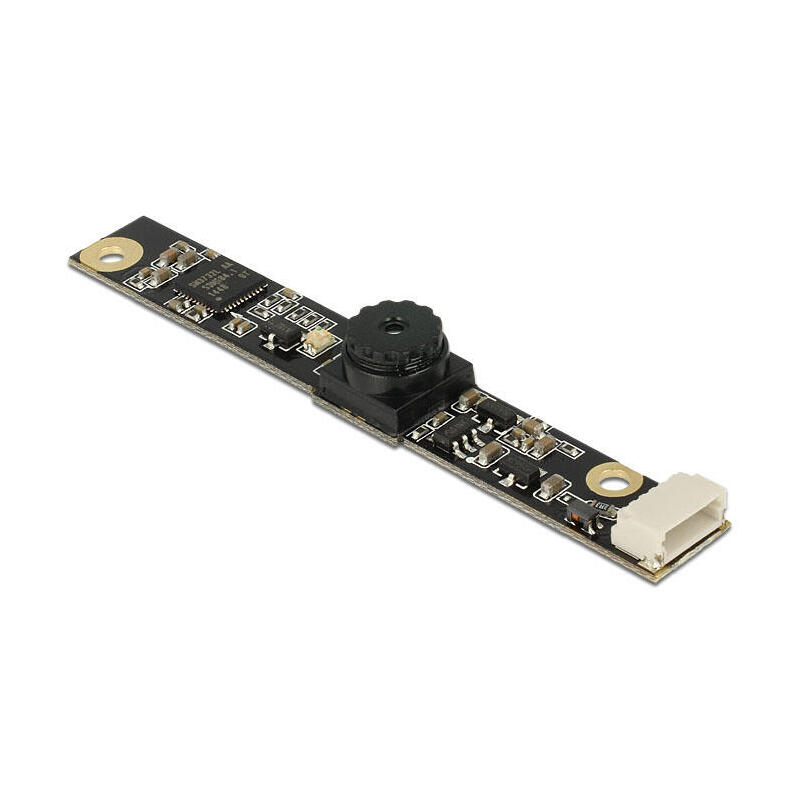

delock 95976 USB 2.0 Camera Module 3.14 mega pixel 48° V5 fix focus

Descripción

The Delock USB 2.0 camera module offers in compact construction low power consumption as well as high resolution. It is ideal for installation in industry components like IPCs, embedded systems, sensors, notebooks, smartphones, tablets or instrument manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.

Detalles tecnicos

Connector: USB 2.0 5 pin jack SMT, 1 mm pitch
Resolution: 3.14 Mega Pixel
With optical IR filter
Standard SCCB interface (I²C Bus)
Output support for RAW RGB, RGB565/555/444, CCIR656,
YUV422/420, YCbCr422 and compression
Maximum resolution: QXGA (2048 x 1536)
Automatic image control functions including
- Automatic exposure control (AEC)
- Automatic white balance (AWB)
- Automatic band filter (ABF)
- Automatic black-level calibration (ABLC)
Image quality controls including colour saturation, gamma,
sharpness (edge enhancement), lens correction, white pixel canceling,
noise canceling, and automatic 50/60 Hz luminance detection
Supports scaling
Power consumption:
Sensor suspend: 90 mA
Sensor active: 430 mA ± 5 mA @ 640 x 480 pixel
Operating voltage: 5 V DC
Operating temperature: 5 °C ~ 50 °C
Relative humidity during operation: max. 80 %
Sensor size: 1/4 inch
Sensitivity: 0.6 V (lx s)
Signal to noise ratio: 36 dB
Dynamic range: 68 dB
Fix focus: 0.3 m ~ infinite
Lens: F/2.8
Frame rates:
30 fps @ HVGA, VGA, XGA, 720p, QVGA
15 fps @ UXGA, 1080p, QXGA
Dimension (LxWxH): ca. 60 x 8 x 6.3 mm

Requisitos del sistema

PC with UVC support
Windows Vista/ 7/ 8/ 10
DirectX 9.0c and above
Linux 2.6.15 and above with Video4Linux
Minimum CPU P4 1.4 GHz, 512 MB RAM

Contenido del paquete

Camera module
CD-ROM with user manual

Referencia 904091720

Ficha técnica

COLOR DEL PRODUCTO: NEGRO

Estado Nuevo
