KONVERTER USB 2.0 SERIELL RS-422 485 MIT 3 KV ISOLATION

159,95 €
DeLOCK 62501. Conector 1: USB 2.0, Conector 2: RS-422/485. Color del producto: Negro, Verde
Referencia:904091778
PN:DELOC-62501
EAN:4043619625017
Cantidad
Recíbelo en 6 a 9 días hábiles

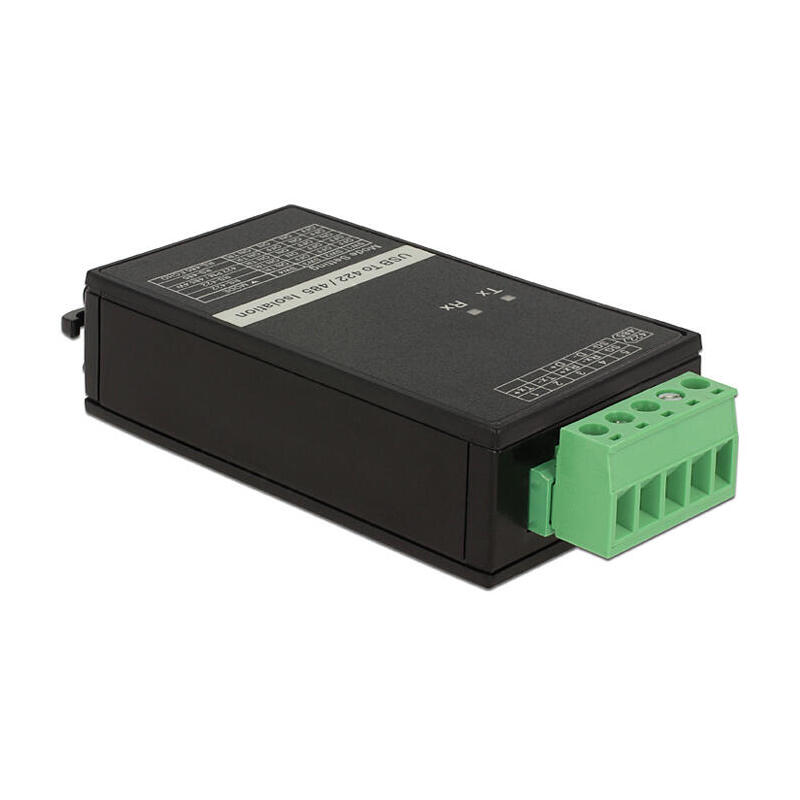

delock 62501 Converter USB 2.0 > Serial RS-422/485 with 3 kV Isolation

Descripción

This USB 2.0 to serial RS-422/485 converter by Delock offers an RS-422/485 connection for measuring devices, POS systems, printers, modems, IoT devices etc. The galvanic isolation prevents data transmission errors with uneven earthing potentials, ground loops or voltage spikes. The converter is suitable for DIN rail mounting.

Galvanic isolation
The galvanic isolation (3 KV) is done with optical isolators.


Detalles tecnicos

  • Connector:
    Host: 1 x Mini USB 2.0 B female
    Device: 1 x RS-422/485 Terminal Block 5 pin
  • Data transfer rate up to 1 Mb/s
  • 1 x DIP switch: RS-422/485 set operating mode
  • LED indicators for status TX / RX
  • 3 kV optical isolation
  • ± 15 kV ESD protection for all signal pins
  • Supports: RS-485 Echo Mode
  • Terminalresistors ON/OFF
  • Power consumption: 54 mA / 270 mW
  • Power supply via USB (Bus-Powered)
  • Operating temperature: - 30° ~ 75° C
  • Storage temperature: - 40° ~ 85° C
  • Relative humidity: 5 ~ 95 % (not condensing)
  • Housing: plastic
  • Dimension (LxWxH): ca. 101 x 42 x 22 mm


Requisitos del sistema

  • Windows XP/XP-64/Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-6410/10-64/11, Server 2012/2012R2/2016, Mac OS 10.5, Linux Kernel 2.6
  • PC or notebook with one free USB port

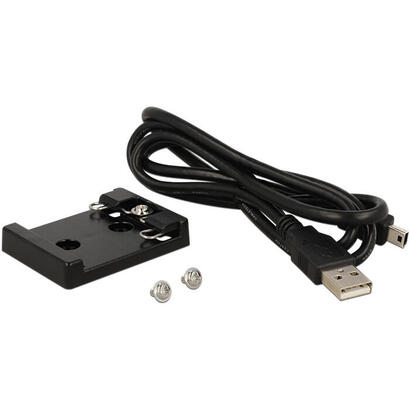

Contenido del paquete

  • Converter
  • USB 2.0 cable, length: ca. 1 m
  • Mounting set for DIN rail
  • Driver CD
  • User manual


Paquete

  • Box


Galvanic isolation Here you can find information about Galvanic isolation

RS-422 / RS-485 Here you can find information about RS-422 / RS-485

904091778

Ficha técnica

COLOR DEL PRODUCTO
NEGRO, VERDE
CONECTOR 1
USB 2.0
CONECTOR 2
RS-422/485
GÉNERO DEL CONECTOR 1
HEMBRA
