DELOCK WLAN 802.11 AC A H B G N ANTENNE SMA STECKER 1,4 - 3,0 DBI OMNIDIREKTIONAL MIT ANSCHLUSSCABLE ULA100 1 M WEISS OUTDOOR

78,96 €
DeLOCK 89486. Ganancia de la antena (max): 3 dBi, Frecuencia de banda: 2.4 - 2.5, 4.9 - 5.85 GHz, Estándares de red: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h. Tipo de conector de antena: SMA, Polarización: Polarización linear, Ratio de voltaje de onda estacionaria (VSWR): 2 - 2,5
Referencia:904092033
PN:DELOC-89486
EAN:4043619894864
Cantidad
Recíbelo en 6 a 9 días hábiles

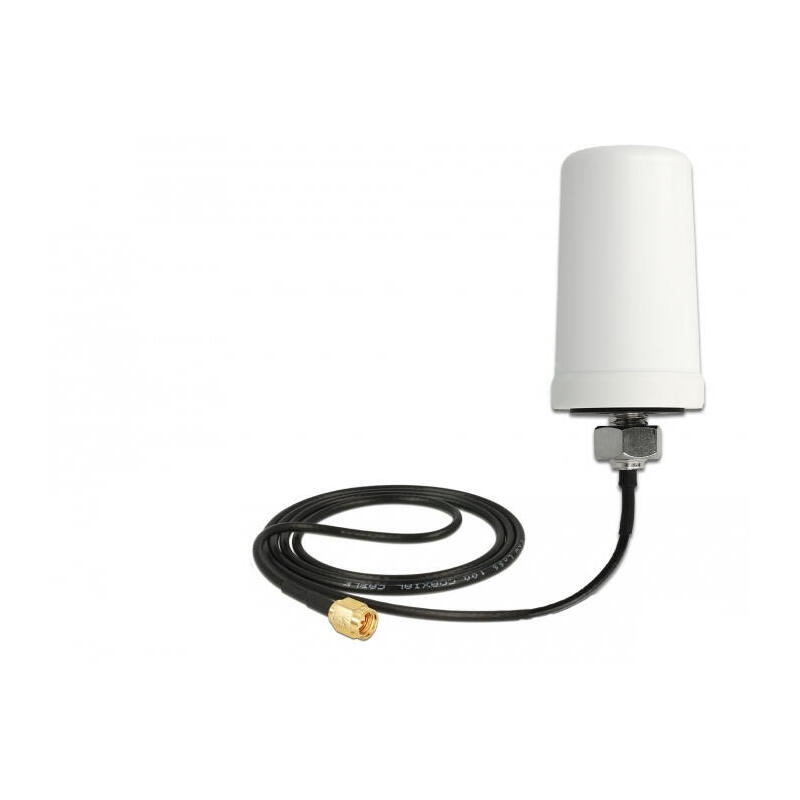

delock 89486 WLAN 802.11 ac/a/h/b/g/n Antenna SMA plug 1.4 - 3.0 dBi omnidirectional with connection cable ULA100 1 m white outdoor

Descripción

This WLAN antenna by Delock allows the usage of different WLAN bands inside and outside.


Detalles tecnicos

  • Connector: 1 x SMA plug
  • Frequency range:
    2400 - 2500 MHz
    5150 - 5875 MHz
  • Antenna gain:
    1.4 dBi @ 2400 - 2500 MHz
    3.0 dBi @ 5150 - 5875 MHz
  • Impedance: 50 Ohm
  • Polarisation: linear, vertical
  • VSWR: 2.0
  • Operating temperature: - 40 °C ~ 85 °C
  • Housing material: polycarbonate
  • Protection class: IP67
  • Colour: white
  • Cable type: ULA 100
  • Cable colour: black
  • Cable attenuation:
    1.4 dB @ 2500 MHz per meter
    2.3 dB @ 5875 MHz per meter
  • Cable diameter: ca. 2.79 mm
  • Cable length incl. connector: ca. 1 m
  • Dimensions (LxWxH): ca. 77 x 45 x 45 mm


Requisitos del sistema

  • Device with a free SMA jack


Contenido del paquete

  • WLAN antenna


Paquete

  • Poly bag


SMA & RP-SMA Here you can find information about SMA & RP-SMA

904092033

Ficha técnica

LONGITUD DE CABLE
1 M
