POWEREDUSB PCI EXPRESS KARTE 1 X 24 V + 2 X 12 V DELOCK

109,45 €
DeLOCK 89655. Interfaz de host: PCIe, Interfaz de salida: USB 2.0. País de origen: China. Circuito integrado: Pericom PI7C9X, Tasa de transferencia de datos (max): 0,48 Gbit/s. Tipo de embalaje: Caja
Referencia:904092038
PN:DELOC-89655
EAN:4043619896554
Cantidad
Recíbelo en 3 a 5 días hábiles

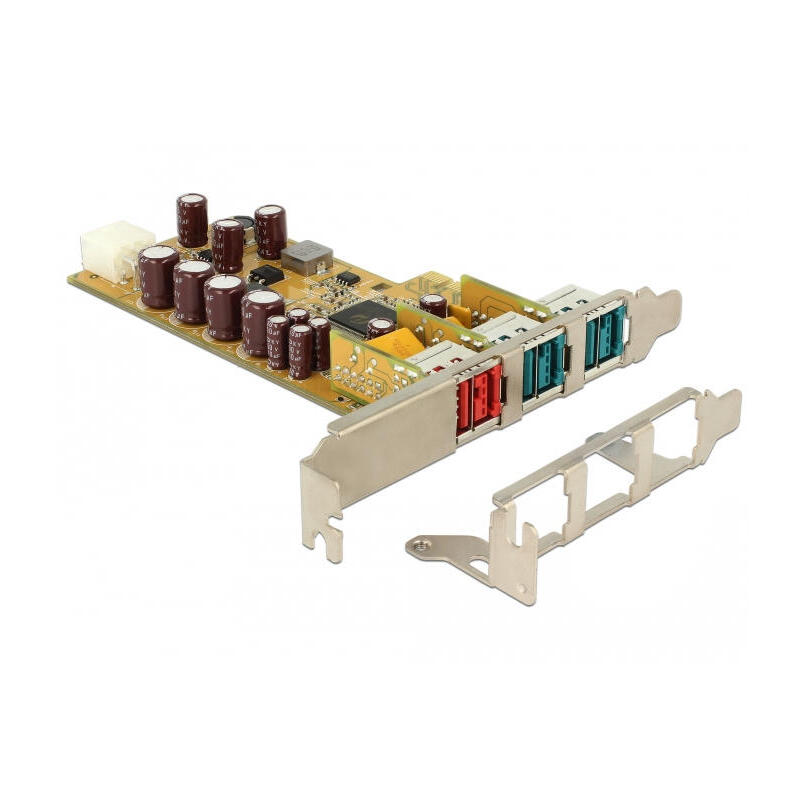

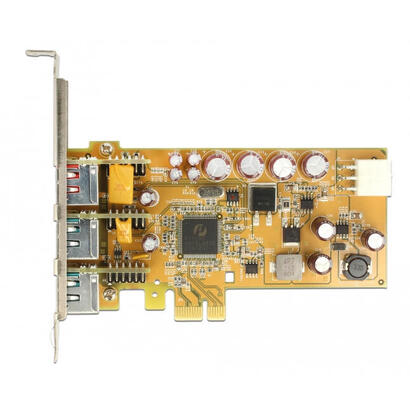

delock 89655 PoweredUSB PCI Express x1 Card > 1 x 24 V + 2 x 12 V

Descripción

The PCI Express card by Delock expands a PC by three external PoweredUSB 2.0 ports. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Furthermore, with the help of appropriate cables, devices which require a power supply of 12 V or 24 V, e.g. barcode scanner or POS systems, can be connected and need no additional power supply.


Detalles tecnicos

  • Connectors:
    external:
    1 x PoweredUSB 2.0 Type-A female 24 V
    2 x PoweredUSB 2.0 Type-A female 12 V
    internal:
    1 x PCI Express x1, V1.1
    1 x 6 pin power connector
  • Chipset: Pericom PI7C9X
  • Output current max. 3 A per PoweredUSB port and 0.5 A per USB 2.0 port
  • Data transfer rate up to:
    Hi-Speed 480 Mbps,
    Full-Speed 12 Mbps,
    Low-Speed 1.5 Mbps
  • Over-current protection for each port
  • Compliant with OHCI and EHCI
  • ESD protection up to 15 kV


Requisitos del sistema

  • Windows 7/7-64/8.1/8.1-64/10/10-64, ex Linux Kernel 2.6.x / Kernel 4.9.4
  • PC with one free PCI Express slot
  • Power supply with one free 6 pin power connector


Contenido del paquete

  • PCI Express card PoweredUSB
  • Low profile bracket


Paquete

  • Box

904092038

Ficha técnica

CANTIDAD DE PUERTOS USB 2.0
3
