PCI EXPRESS X4 NETZWERKKARTE 10 GIGABIT LAN 1 X RJ45 MIT POE+ IOI

Name: PCI EXPRESS X4 NETZWERKKARTE 10 GIGABIT LAN 1 X RJ45 MIT POE+ IOI
Brand: DELOCK
SKU: 904092122
Price: 381.45000000000294 EUR
Availability: OutOfStock

381,45 €

DeLOCK GE10P-PCIE4XG301. Interno. Tecnología de conectividad: Alámbrico, Interfaz de host: PCI Express, Interfaz: Ethernet. Rango máximo de transferencia de datos: 100 Mbit/s

Referencia:904092122
PN:DELOC-90434
EAN:4043619904341
Cantidad

Recíbelo en 6 a 9 días hábiles

Descripción
Detalles del producto

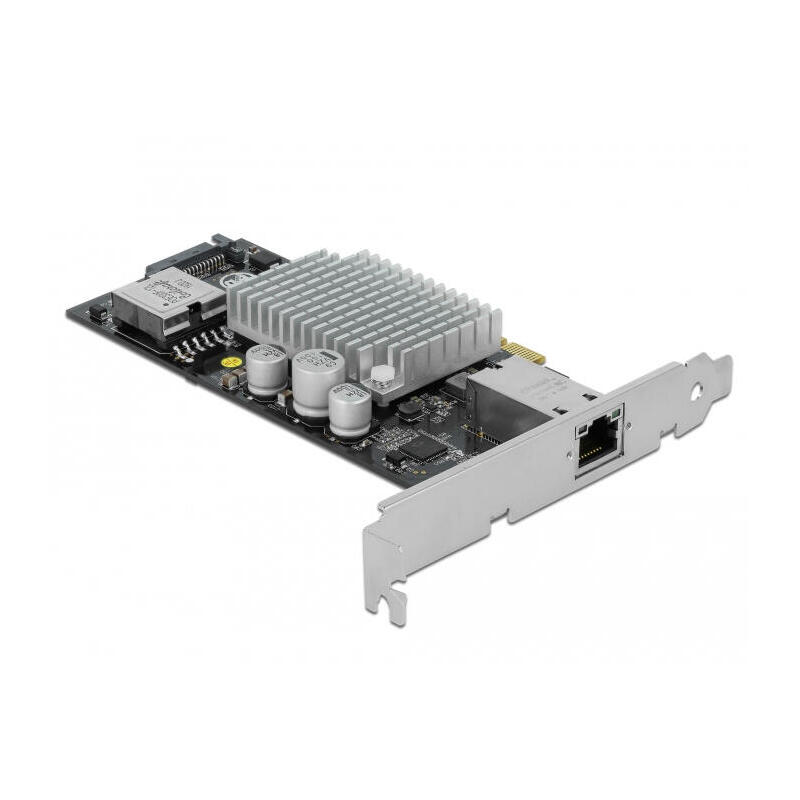

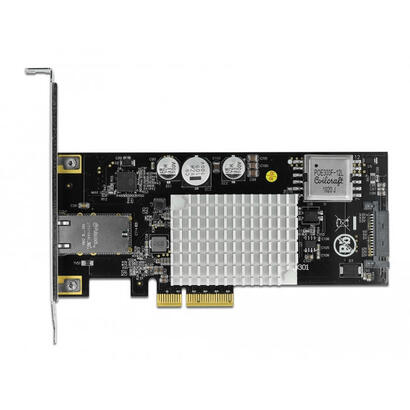

delock 90434 PCI Express Card to 1 x 10GBase-T LAN PoE+ RJ45

Descripción

This PCI Express card by IOI offers one network port with a data transfer rate up to 10 Gbps. The RJ45 port supports Power over Ethernet according to IEEE 802.3at, so you can supply power to PoE-enabled devices, such as an IP camera or a PoE splitter via the network cable.

Multi-Gigabit
The PCIe card supports 10GBase-T according to the standard IEEE 802.3an, 5G and 2.5G Ethernet, as well as 1000BASE-T.

Detalles tecnicos

IOI item number: GE10P-PCIE4XG301
Connector:
external:
1 x 10 Gigabit LAN RJ45 jack with screw nuts
internal:
1 x SATA 15 pin power connector
1 x PCI Express x4, V3.0
Chipset: Aquantia AQC107
Data transfer rate:
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1 Gbps
NBASE-T (draft) with up to 2.5 Gbps and 5 Gbps
10 Gigabit Ethernet up to 10 Gbps
Supports Full Duplex flow control (IEEE 802.3x)
Supports IEEE 802.3 10Base-T and 802.3u 100Base-TX
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Supports 16k Jumbo frames
Supports IEEE 802.3at Power Sourcing Equipment (PSE)
Power delivery: max. 30 W total
PoE power input from PCIe or SATA 15 pin power connector

Requisitos del sistema

Linux Kernel 3.12 or above
Windows 7/7-64/8.1/8.1-64/10/10-64
PC with one free PCI Express x4 / x8 / x16 / x32 slot

Contenido del paquete

PCI Express card
Driver CD
User manual

Paquete

White Box

Referencia 904092122

Ficha técnica


ETHERNET LAN (RJ-45) CANTIDAD DE PUERTOS: 1
TECNOLOGÍA DE CONECTIVIDAD: ALÁMBRICO

Estado Nuevo
