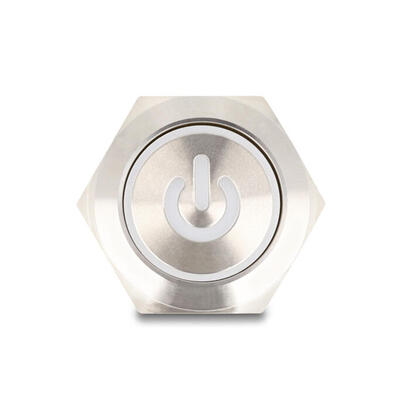

DRUCKSCHALTER ZUM EINBAU 22 MM 6 X LÖTANSCHLUSS LED WEISS POWERSYMBOL + RING

23,45 €
DeLOCK 22051. Color del producto: Plata, Material: Níquel, Acero inoxidable. Voltaje de entrada: 230 V, Máxima corriente: 3 A. Ancho: 40 mm, Profundidad: 30 mm
Referencia:904112669
PN:DELOC-22051
EAN:4043619220519
Cantidad
Recíbelo en 6 a 9 días hábiles

delock 22051 Push Switch for Installation 22 mm 6 x solder connection LED white power symbol + ring

Descripción

This push switch by Delock is ideal for installation in control panels , for example in industry, control or regulation technology . Push buttons can also be found in the automotive industry or the consumer sector.


Push switch

Unlike a button, a switch remains in its position after being actuated. Examples of switches are toggle switches, rotary switches or slide switches. The light switch is probably the best-known example.


Opener and closer

The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them.


Nota

• The installation should only be carried out by qualified electricians in compliance with the usual national power supply guidelines.
• Earthing is necessary for low-voltage systems to ensure the safety and functionality of the system.


Detalles tecnicos

  • Connectors: 6 x solder connection
  • Switch type: 2 NO + 2 NC
  • Switching voltage: AC 230 V~ / 3 A
  • Number of contacts: 6
  • Function: latching
  • Actuator: flat
  • Operating temperature: -25 °C ~ 55 °C
  • Mounting hole diameter: ca. 22 mm
  • Hexagon nut spanner width: 25 mm
  • Mounting depth: ca. 39 mm
  • Thread size: M22
  • LED lighting: white
  • LED voltage: 12 V
  • LED type: power symbol + ring
  • Material: stainless steel nickel plated
  • Mechanical life: 1,000,000 cycles
  • Electrical service life: 100,000 cycles
  • Protection class: IP65
  • Dimensions (LxD): ca. 40 x 30 mm


Contenido del paquete

  • Push switch


Paquete

  • Retail Box

904112669
