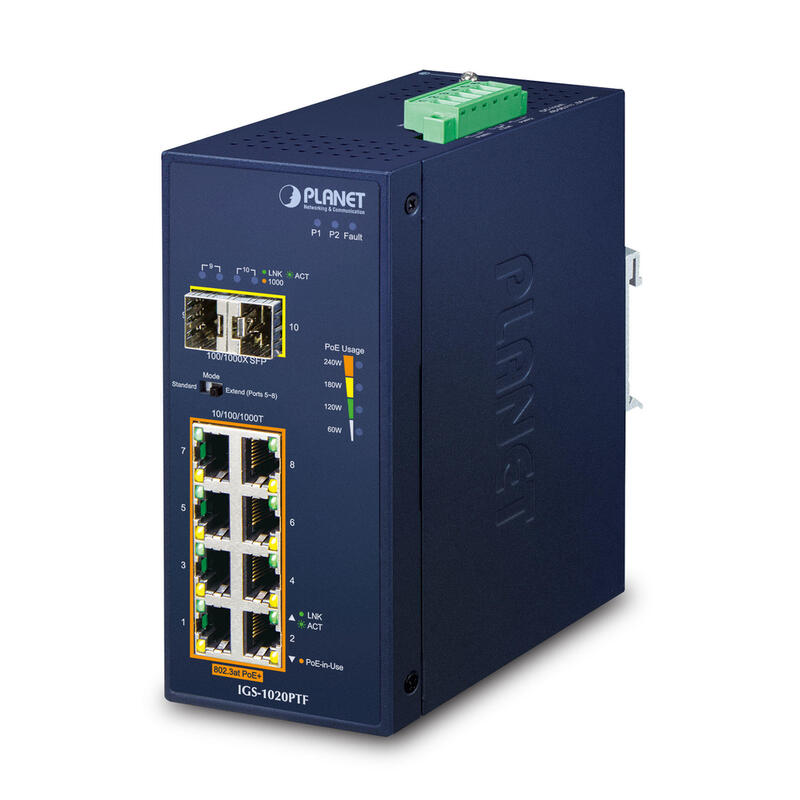

PLANET 8 PUERTOS GE 802.3AT POE + 2 100 1000X SFP

391,95 €
PLANET IP30 Ind 8-P 10/100/1000T, No administrado, Gigabit Ethernet (10/100/1000), Bidireccional completo (Full duplex), Energía sobre Ethernet (PoE), Montaje de pared
Referencia:902243187
PN:IGS-1020PTF
EAN:4711605284943
Cantidad
Recíbelo en 3 a 6 días hábiles

PLANET IP30 Ind 8-P 10/100/1000T No administrado Gigabit Ethernet (10/100/1000) Energía sobre Ethernet (PoE) Azul

  • Physical Port
  • Eight 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3af/at PoE+ Injector (Ports 1 to 8)
  • Two 100/1000BASE-X SFP slots for SFP transceiver type auto detection (Ports 9 to 10)
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 8 ports of IEEE 802.3af/802.3at devices powered
  • 240-watt PoE budget
  • Supports PoE power up to 30 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
  • Industrial Case and Installation
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • 48~56V DC redundant power with reverse polarity protection
  • Supports 6KV DC Ethernet ESD protection
  • Supports -40 to 75 degrees C operating temperature
  • Switching
  • Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 8K MAC address table size
  • 20Gbps switch fabric
  • 9K jumbo frame
  • Hardware-based DIP switch for "Standard" and "Extend" mode selection; the "Extend" mode features 30-watt PoE transmission distance of 250m at speed of 10Mbps
  • Automatic address learning and address aging
Características de administración
Tipo de interruptorNo administrado
Puertos e Interfaces
Cantidad de puertos básicos de conmutación RJ-45 Ethernet8
Puertos tipo básico de conmutación RJ-45 EthernetGigabit Ethernet (10/100/1000)
Cantidad de ranuras del módulo SFP2
Conexión
Estándares de redIEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z
Bidireccional completo (Full duplex)Si
Transmisión semidúplexSi
Transmisión de datos
Capacidad de conmutación20 Gbit/s
Rendimiento14,8 Mpps
Tabla de direcciones MAC8000 entradas
Guardar y remitirSi
Jumbo Frames, soporteSi
Tramas Jumbo9000
Diseño
Color del productoAzul
Material de la carcasaMetal
Indicadores LEDSi
Montaje de paredSi
Montaje en carril DINSi
CertificaciónFCC Part 15 Class A, CE IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Control de energía
Voltaje de entrada DC48 - 56 V
Corriente de entrada6 A
Alimentación a través de Ethernet (PoE)
Energía sobre Ethernet (PoE)Si
Cantidad de puertos Power over Ethernet (PoE)8
Potencia a través de Ethernet (PoE) Presupuesto240 W
Condiciones ambientales
Intervalo de temperatura operativa-40 - 75 °C
Intervalo de temperatura de almacenaje-40 - 85 °C
Intervalo de humedad relativa para funcionamiento5 - 90%
Intervalo de humedad relativa durante almacenaje5 - 90%
Peso y dimensiones
Ancho66 mm
Profundidad106 mm
Altura152 mm
Peso879 g

PLANET IP30 Ind 8-P 10/100/1000T. Tipo de interruptor: No administrado. Puertos tipo básico de conmutación RJ-45 Ethernet: Gigabit Ethernet (10/100/1000), Cantidad de puertos básicos de conmutación RJ-45 Ethernet: 8. Bidireccional completo (Full duplex). Tabla de direcciones MAC: 8000 entradas, Capacidad de conmutación: 20 Gbit/s. Estándares de red: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z. Voltaje de entrada DC: 48 - 56 V. Energía sobre Ethernet (PoE). Montaje de pared
